Xinda Laboratory Extruder : Clamshell Barrel
Laboratory extruder was developed especially for processing of smallest batch sizes.It is equipped with segmented screws that can be quickly reconfigured to meet your specific needs. The “clamshell” design makes screw changes and cleanout quick and easy, adding to its versatility. High performance and flexibility make it an ideal compounding system for formulation development.
Product Quality Index
Energy Generation
Application
We provide our machinery users with consistent high productivity and product quality and the maximum cost effectiveness with XINDA technology. The XINDA twin screw (P)SHJ series is ideal for precise compounding of polyolefins,engineered plastics and other continuous processes.

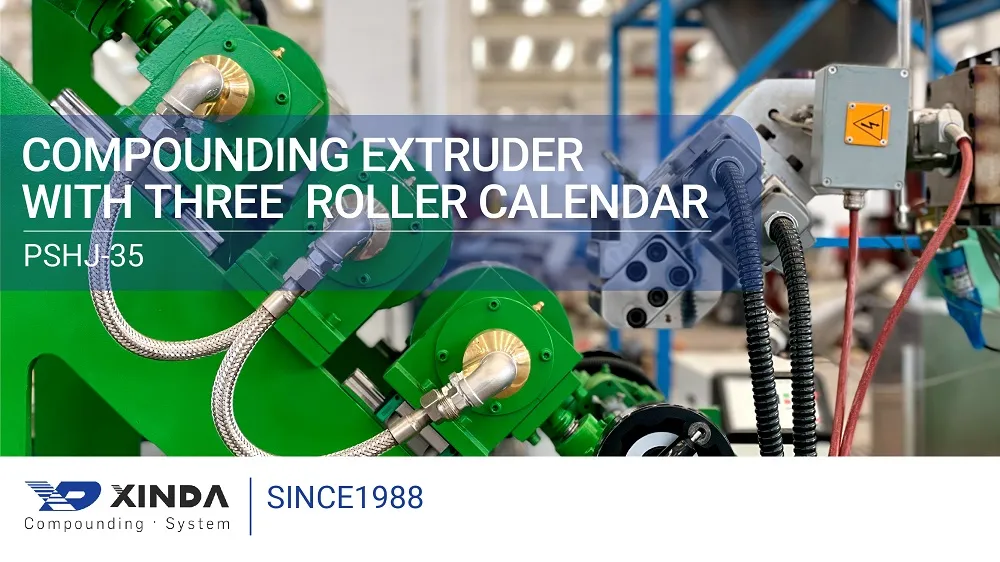

Laboratory Twin Screw Extruder PSHJ-20、PSHJ-35
Features and Advantages
> Short changeover times
> Small batches from 2kg -80kg /h
> Clamshell design, simple Cleaning and Maintenance
> Modular structure, can be changed easily according to different processing techniques
> Compact design, with both efficiency and economy
> Simple operation by PLC controller and touch screen
| Extruder Model | PSHJ-20 | PSHJ-35 |
|---|---|---|
| Screw Diamenter | 21.7 | 35.6 |
| Centre Distance | 18 | 30 |
| Length Dianmeter Ratio | 28-52 | 28-52 |
| Main Motor Power | 4-5.5 | 18.5-22 |
| Max.Screw Speed | 600 | 600 |
| Output Torque Per Shaft | 32-43 | 140-166 |
| Reference Output | 5-20 | 20-80 |
Main Dimensions（L×W×H） [mm] 1660×660×1850

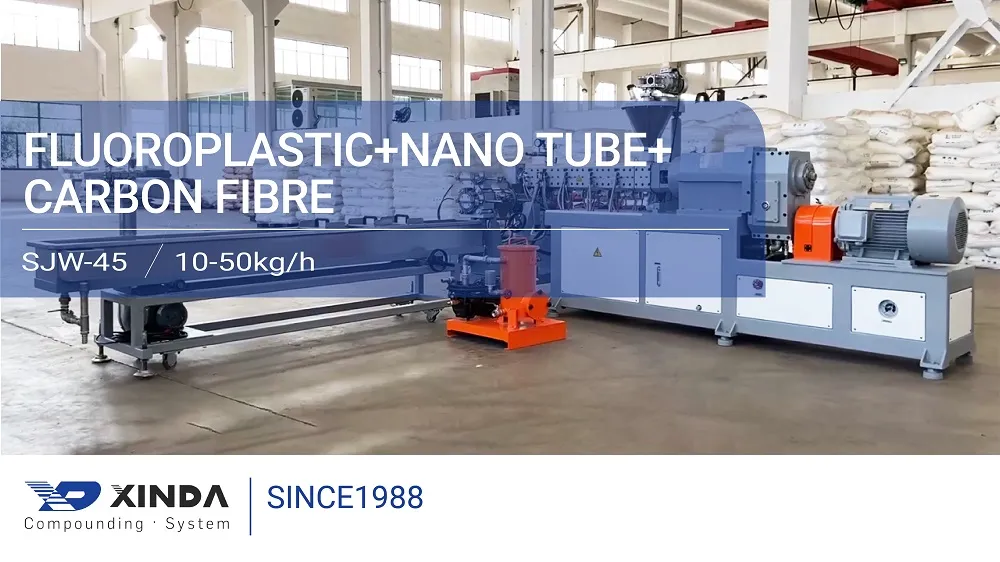

Laboratory Kneader SJW-45
Features and Advantages
> Short changeover times
> Controlled and equal shear mixing
> Highly effective distributive mixing efficiency
> High filler loading capacity
> Accurate temperature control
> Narrow residence time distribution
> Effective feeding of liquids
| Extruder Model | |||
|---|---|---|---|
| Screw Diamenter | 45 mm | Heating | Electricity |
| Oscillating stroke | 6.75 mm | Cooling | water |
| L/D | 12-20 | Heating and Cooling | 5 zons |
| Max. Speed | 500 rpm | Dimension | 3220*1500*1700 mm |
| Main Motor Power | 22 kw | Weight | 2000 kg |
